Losi Mini-B

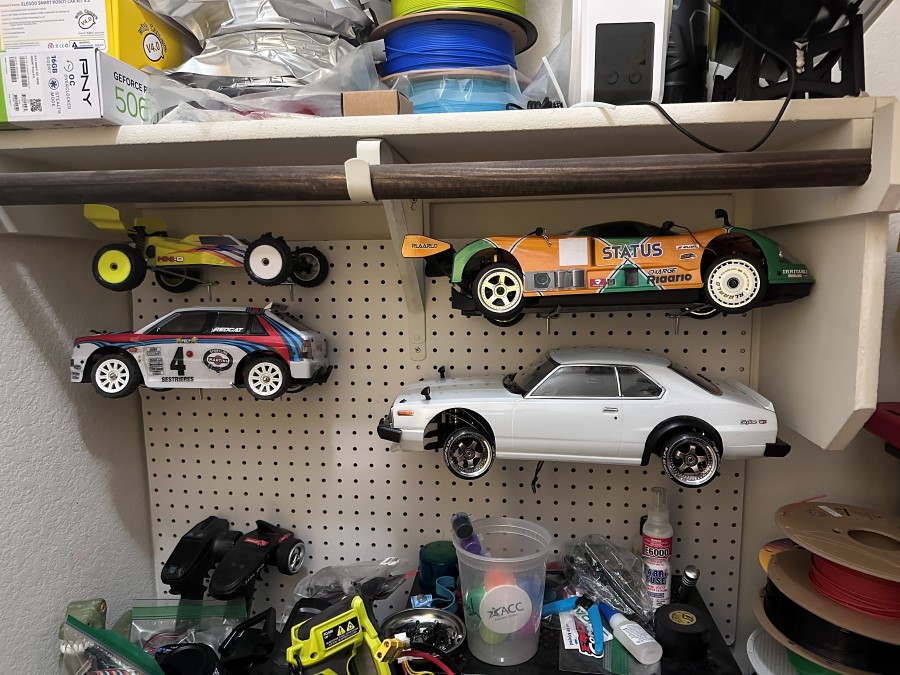

Shelf Queen1/16 2WD Buggy · 1/16 · 2WD
Losi Mini-B, yellow body with red/blue Mini-B graphics.
Manufacturer page → — source of truth for stock specs; edit `manufacturerUrl` in rc-fleet.json to update.
Build Sheet
21 of 31 fields filled in.
Chassis
- Platform
- Losi Mini-B (LOS01016T3)
- Drivetrain
- 2WD
- Material
- 1.5mm 6061-T6 aluminum plate
- Notes
- Bevel-gear differential. 10.7" L x 7" W x 4" H, 7.5" wheelbase.
Motor
- Motor
- Dynamite 280-size
- Type
- Brushed
- kV
- TBD
- Turns
- 47T
- Notes
- Stock motor — see Upgrades, since replaced.
ESC
- ESC
- HRZ 2-in-1 ESC/RX
- Cell range
- 2S
- Current rating
- TBD
- Sensored
- No
- Notes
- Stock combo ESC/receiver — see Upgrades.
Gearing
- Pinion
- 18T
- Spur
- 60T
- Internal ratio
- 0.5 mod
- Final drive
- TBD
- Rollout
- TBD
Radio & Steering
- Servo
- Spektrum SX107
- Torque
- TBD
- Servo type
- Metal gear
- Transmitter
- Spektrum 2.4GHz
- Receiver
- Built into HRZ 2-in-1 ESC unit
- Telemetry
- TBD
Running Gear
- Tires
- Tapered Pin front / BK Bar rear
- Wheels
- Dish wheels
- Shocks
- TBD
- Springs
- TBD
- Body
- TBD
- Notes
- TBD
Batteries
- 2S LiPo
- 650 mAh · 20C · EC2 · Dynamite Reaction 2.0 7.4V, included stock.
Upgrades
- Power system
- Dynamite 280-size brushed motor (47T) + HRZ 2-in-1 brushed ESC/RX → All-in-one brushless system (Exact brushless combo brand/model TBD.)
Mods
Nothing logged yet.
To Do
Nothing on the list.
